Double Chain – TKK

MAIN FEATURES

  • Capacities up to 1000 cm/h
  • Manganese guide high wear resistent
  • Chain in MnCrB5 high stress resistant with pins in stainless steel
  • Available troughs manufacture in stainless steel (AISI304) for corrosive conveying materials
  • Available covered bottom with Hardox 450 for very wearing conveying materials
  • Available with bottom and scrapers in high density polyethylene for glued conveying materials

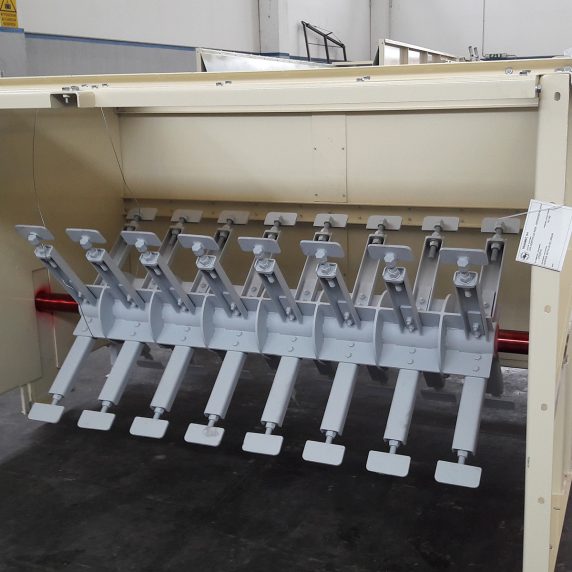

  • Available with scrapers “rake” type for conveying easily long strands (example OSB strands)
  • Equipped with clogging sensor
  • Equipped with SEW gear motors, KH series, directly coupled on the shaft with conical socket for easy maintenance
  • Each gear motor is equipped with torque arm and its sensor, in order to prevent chain breaking to to clogging
  • Availability to project conforming ATEX norm
